品牌: KARAM
型號: PN800 & PN801
鋁質三腳架:
Model: PN800
可伸縮鋁質腳架
符合歐盟標準 EN 795:2012 TYPE B
最高負重: 500kg
重量: 12.15kg
最高高度: 215cm
手絞盤:
Model: PN801
20m 長金屬索
符合歐盟標準 EN 1496 class B
配有固定板，可架設於三腳架上
具有自動瑣定系統
最高負重: 125kg
額外配件:
本港公証行簽發証書
(FORM4 & FORM5)
Brand: KARAM
Model: PN800 & PN801
For access in confined spaces.
With two mounted pulleys at the head of the Tripod in the prolongation of the main leg for passing a cable.
Having two auxiliary eye bolts as attachment points.
Aluminium alloy cast head, legs in Aluminium.
Steel support-shoes provided with rubber sole to increase friction and impart 詳細介紹 details stability.
Strength of anchorage point greater than 12 kN.
Every Tripod is provided with inbuilt fixture for attaching our winch PN 801
PN 800 (7ft) can also be used with Retrieval Fall Arrester Blocks PCGS 10R, PCGS 20R & PCGS 30R with the help of their specialized mounting brackets respectively.
Every Tripod is provided with Tripod Bag, Ref:PN 904(7ft)(BL)
Length: 7 ft
Weight: 12.15kg
Compile with EN 795:2012 TYPE B
SPECIFICATION:
Fully adjustable telescopic legs, adjustable height from 1.15m to 2.15m
Wheelbase (Footprint) : 1.5m Diameter
Weight : 12.15 kgs
Maximum Load Capacity : 500kg

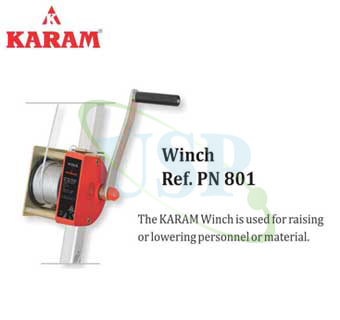

Winch Model: PN801
Description:
Equipped With Bolting Fixture For Robust Fitting On To The Tripod
To Be Used With A Retractable Fall Arrester When Deployed For Raising or Lowering A Person.
Specifications:
Liftiing load capacity: 125 Kg
Length: 20.0m
Conforms to EN 1496 Class B
Optional:
A Hong Kong issued surveyor test report under F&IU
(FORM4 & FORM5)
